INTERNALS ALIGNMENT

For Steam/Gas Turbines, Compressors, Stern Tubes

Traditional methods of gathering bore alignment data (piano wire and acoustic micrometer) require inordinate attention to ambient temperature conditions, wire sag, and operator involvement in the data collection process. Furthermore, once the data is gathered, it must be manually processed to account for positional presets (catenary curves) and/or shaft to bore disassembly readings. Such labor intensive gathering and manipulation of data increase the chance for systematic errors.

Breakthroughs in stabilizing laser behavior over long distances have produced a measuring system capable of consistently generating accurate bore position data. Repeatability is achieved independent of the technician collecting the data.

Whether your application is short range (under 12 feet) or long range (up to 157 feet), Bengal Resources can deliver accurate data at a cost effective price.

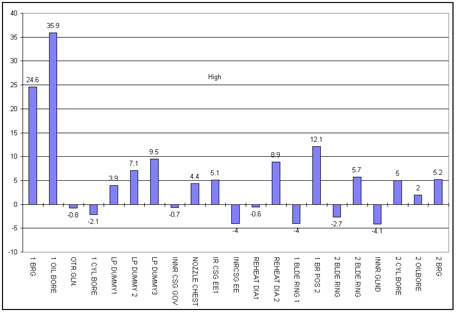

Click image for larger view.

Applications:
· Steam turbine internals (ex: GE, A/C, Westinghouse)
· Gas turbine internals (ex: GE, ABB)
· Compressors (ex: Ingersol)
· Stern tubes (ex:NASSCO)

Crankcase Bore Alignment of a Reciprocating Compressor	Steam Turbine Internals Alignment
